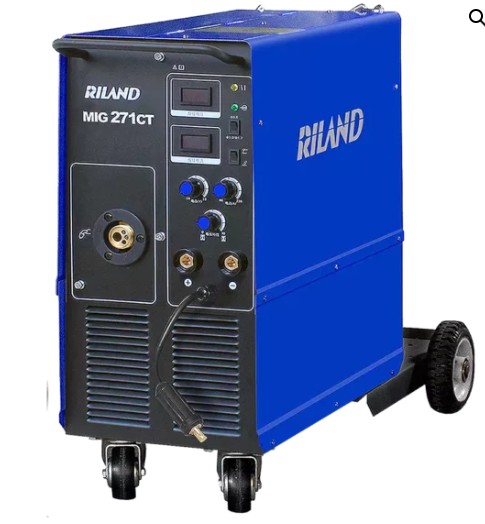

Description

• Advanced IGBT inverter device.
• Simple and intuitive interface allows precise adjustment.
• Inductance control for arc stability and spatter control.
• Digital meters – Voltage and amperage.
• Intelligent protection: over-voltage, over heating protection.

Rated Input Voltage : 220V+-15%
Rated Frequency : 50 / 60 Hz
Rated Input Current : MIG 47.6A / MMA 44.5A
Output Current Range : MIG 40-250A / MMA 20-220A
Output Voltage Range : MIG 16-26.5V / MMA 20.8-28.8V
Duty Cycle (40°) : 20%
Power Factor : 0.73
No Load Voltage : 45V
Efficiency : 80%
Wire Size : 0.8-1.2mm
Wire Feeder Type : Internal
Insulation Class : F
Protection Class : IP IP21
