Description

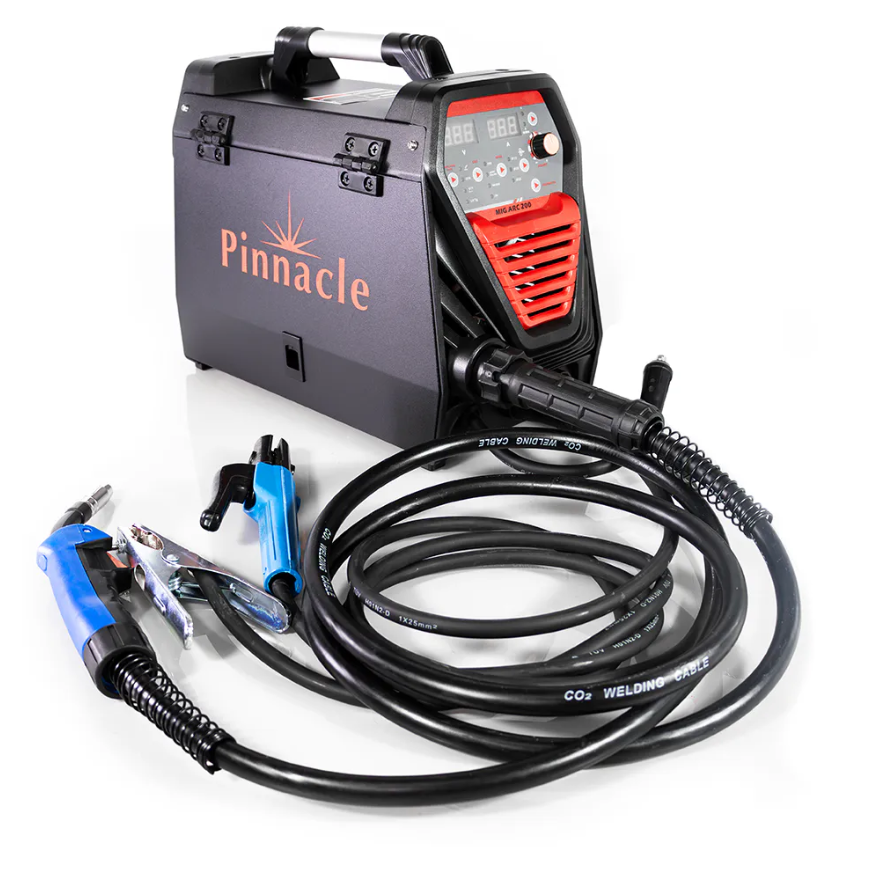

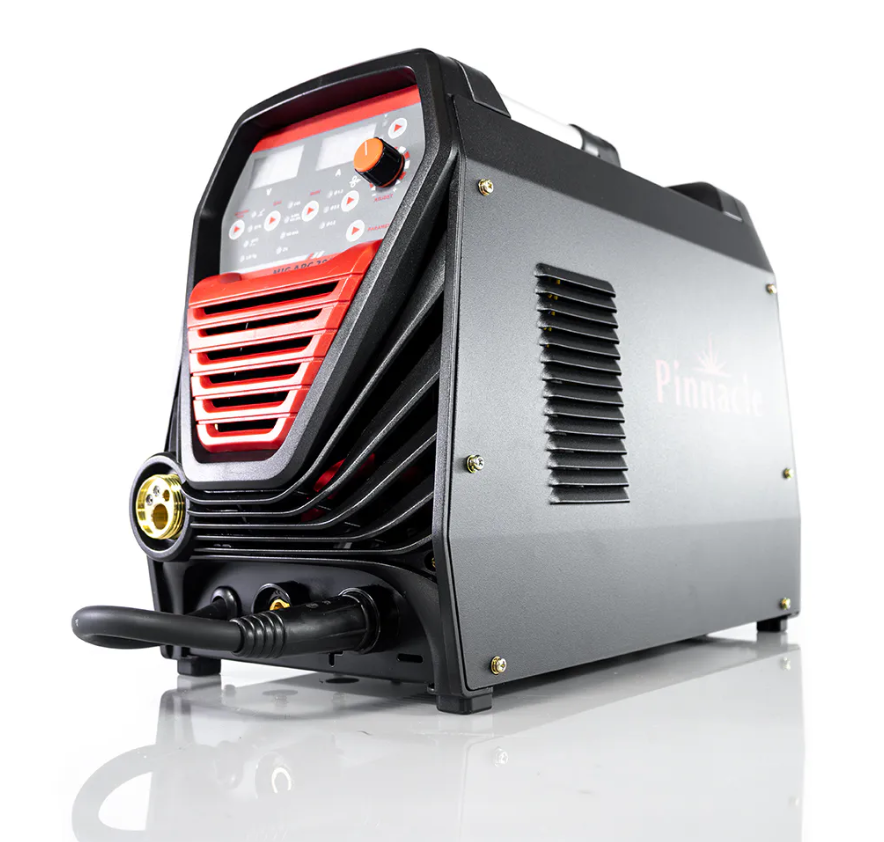

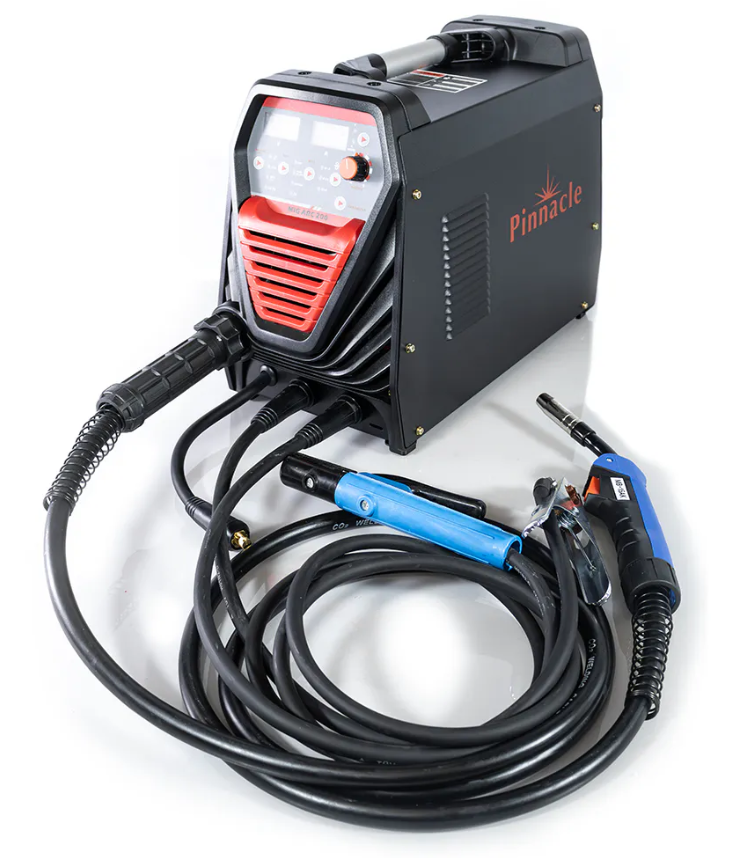

• 200 Amp MIG Welding Machine
• 60% Duty Cycle
• Welds MIG (Gas and No Gas), ARC & TIG
• Single Phase, Portable, Fan-Cooled Digital Inverter Welding Machine
• Microprocessor Operation Panel for simple & precise control
• More Compact Design, Lightweight
• Synergic Control
• Only accommodates 5kg MIG Welding Wire Spools
• Brand: Pinnacle
• Rated Input Voltage: 220V ±10%
• Rated Input Frequency: 50/60Hz
• Rated Input Power: 7.7kVA
• Rated Input Current: 27Amp
• Output Current Range: MIG: 40-200Amp | TIG: 20-160Amp | MMA: 20-160Amp
• Rated Duty Cycle: 60%
• No Load Voltage: 53V
• Power Factor: 0.73
• Efficiency: 85%
• Electrode Size: 2.0 / 2.5 / 3.2mm
• Wire Size: 0.6 / 0.8 / 1.0mm

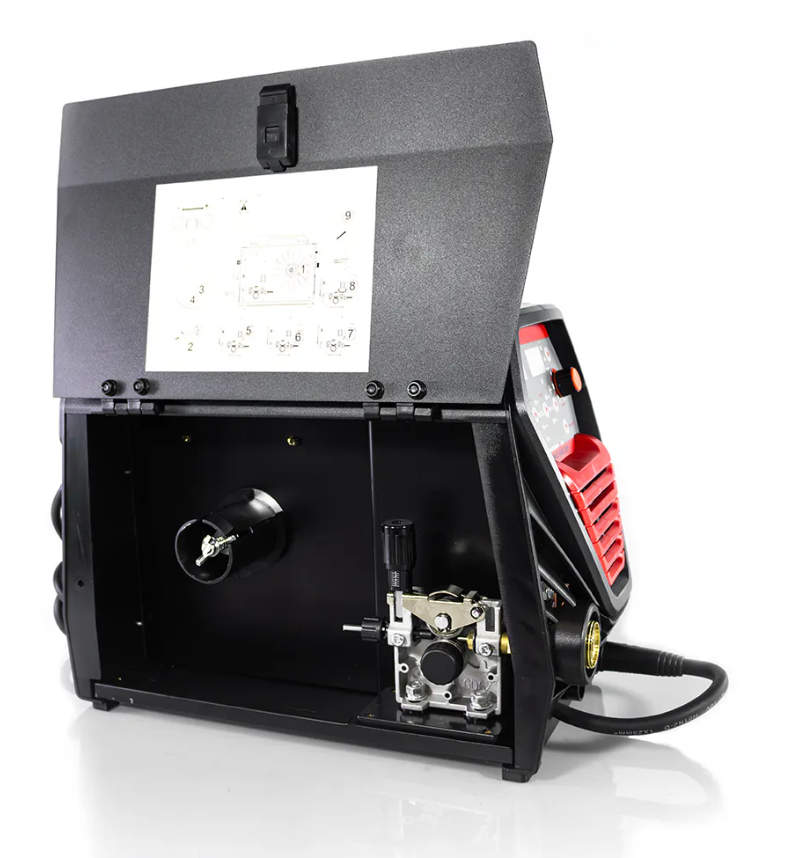

• Wire Feeder: Internal
• Torch Type: MB15
• Spool Size: 5KG
• Insulation Class: F
• Protection Class: IP21S
• Dimensions: 525 x 380 x 380
• Weight13kg
