Description

• IGBT Inverter Technology: Incorporates exclusive RICHIP chip for enhanced stability and control.
• Multi-Process Capability: Offers Gasless MIG and MMA welding options.

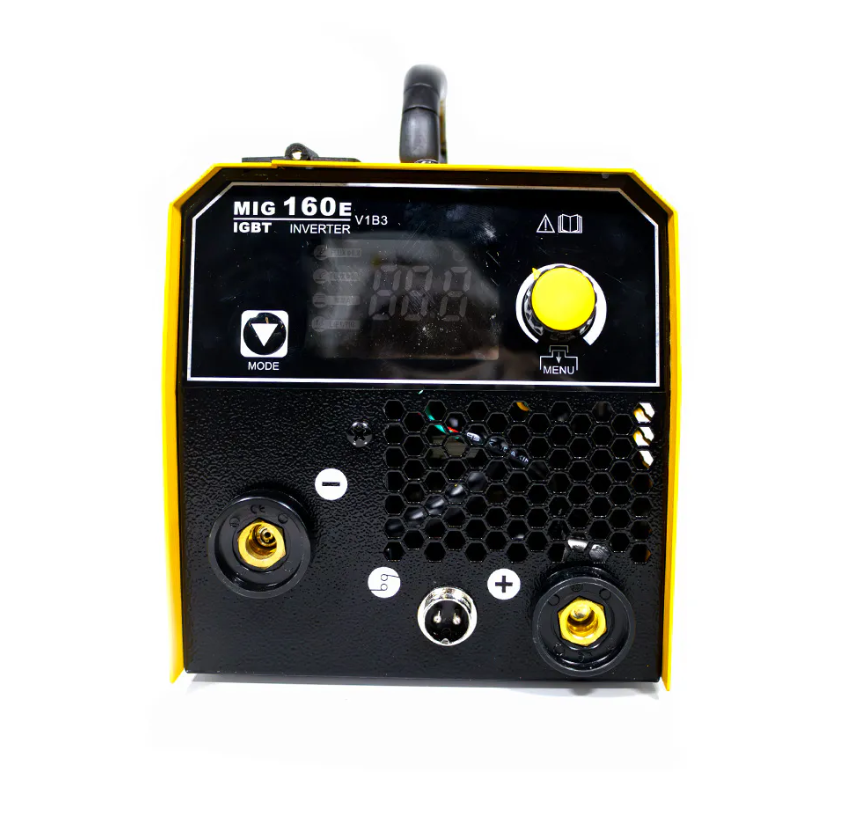

• Digital Display: For precise control and monitoring of welding parameters.
• Overload Safety Protection: Ensures the longevity and safety of the machine.
• Efficient Design: Minimal spatter and stable welding performance.
• Lightweight and Portable: Perfect for varied welding environments.
• Uses 1kg flux cored spools only
• Rated Input Voltage: 230V +- 10%
• Rated Input Frequency: 50/60Hz
• Rated Input Current: 13.8Amp (MIG) | 14.5Amp (MMA)
• Output Voltage Range: 15.5 – 20V (MIG) | 21.2 – 23.2V (MMA)
• Output Current Range: MIG: 30 – 120Amp | MMA: 30 – 120Amp
• Rated Duty Cycle: 20% @ 120Amp (MIG) / 80Amp (MMA)
• No Load Voltage: 55V
• Power Factor: 0.62
• Efficiency: 82%
• Electrode Size: 2.0 / 2.5mm
• Wire Size: 0.8 / 1.0mm

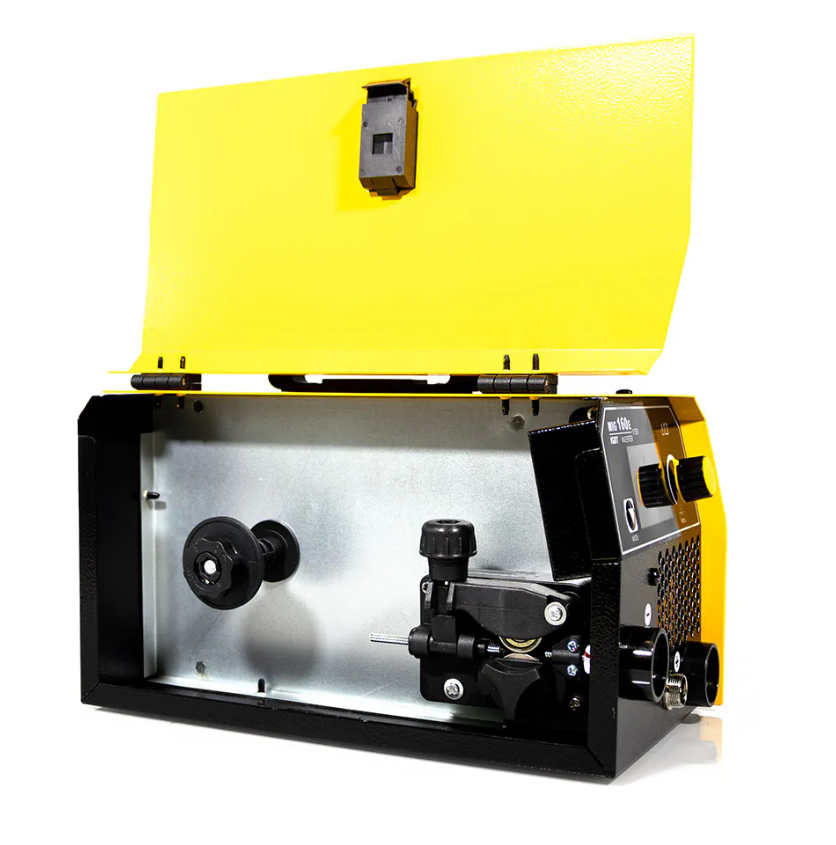

• Wire Feeder: Internal
• Torch Type: Rilon 160E Torch
• Spool Size: 1kg
• Insulation Class: F
• Protection Class: IP21
• Weight: 8kg
